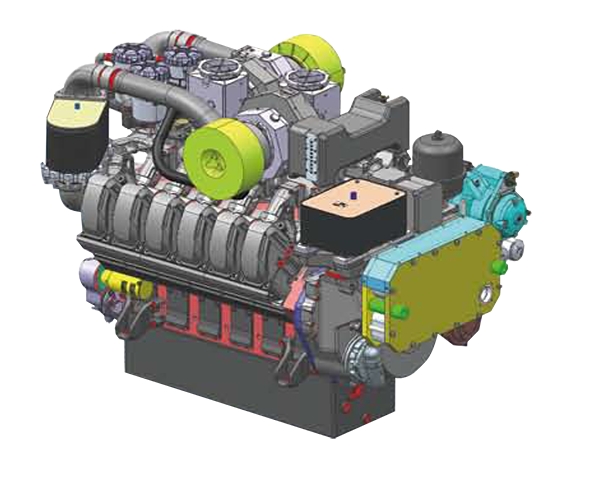

South Korea's first high speed engine, modern H17 / 21V has a unique design concept, the existing himsen engine, 1800 rpm (1500 rpm), single cylinder high output 160 kW (140 kW),. The power / weight ratio of the modern H17 / 21V engine is about 1/3 lower than that of the other four stroke diesel engines. It can be used in ship propulsion, emergency generator set and diesel power plant. The Korean advanced diesel engine offers maximum output power of 3200 kW, and emissions meet the IMO TierII regulations, with low fuel consumption. Modern H17 / 21V is based on the concept of himsen engine and the development of HI touch technology. It also has the following advantages:
• structural strength, minimization of heat load, noise and vibration
Operating system based on high precision dynamic analysis
• efficient turbocharging for optimal performance
Advanced Miller timing
Selection of nozzle specifications
High combustion performance
High efficiency lubrication and cooling system
The HIMSEN H17 / 21V high speed engine marks the birth of a new era of environmentally friendly engines.
Performance characteristics:
• Similar engine high output
• low fuel consumption
• Fast acceleration and load response
Maintenance characteristics:
• Modular design is easier to maintain
• Minimum number and type of components
Environmental protection characteristics:
• Low NOx emissions
• Compliance with IMO class second
• low vibration and noise
Marine application ship form:
• Naval vessels
• Propulsion system
• Generator set
Application of fixed diesel engine:
• Power plant
• Packing power station
• Prefabricated power plant
Emergency generator set
Performance parameter:
|
SPECIFICATION |
UNIT |
HYUNDAI H17/21V |
|
|
BORE / STROKE |
MM |
170 / 210 |
170 / 210 |
|
SWEPT VOLUME |
LITER/CYL. |
4.77 |
4.77 |
|
BANK ANGLE |
|
90 |
90 |
|
ENGINE SPEED |
RPM |
1500 |
1800 |
|
FREQUENCY |
HZ |
50 |
60 |
|
PISTON SPEED |
M/S |
10.5 |
12.6 |
|
MEAN EFFECTIVE PRESSURE(BMEP) |
BAR |
23.5 |
22.4 |
|
ENGINE TYPE |
SPEED |
RATED OUTPUT AT |
|||||
|
CONTINUOUS POWER |
PRIME POWER |
STAND-BY POWER |
|||||
|
ENG KW |
GEN KW |
ENG KW |
GEN KW |
ENG KW |
GEN KW |
||
|
HYUNDAI 8 H17/21V |
1500RPM |
1008 |
963 |
1120 |
1070 |
1232 |
1177 |
|
HYUNDAI 8 H17/21V |
1800RPM |
1152 |
1100 |
1280 |
1222 |
1408 |
1345 |
|
HYUNDAI 10 H17/21V |
1500RPM |
1260 |
1203 |
1400 |
1337 |
1540 |
1471 |
|
HYUNDAI 10 H17/21V |
1800RPM |
1440 |
1375 |
1600 |
1528 |
1760 |
1681 |
|
HYUNDAI 12 H17/21V |
1500RPM |
1512 |
1444 |
1680 |
1604 |
1848 |
1765 |
|
HYUNDAI 12 H17/21V |
1800RPM |
1728 |
1650 |
1920 |
1834 |
2112 |
2017 |
|
HYUNDAI 16 H17/21V |
1500RPM |
2016 |
1925 |
2240 |
2139 |
2464 |
2353 |
|
HYUNDAI 16 H17/21V |
1800RPM |
2304 |
2200 |
2560 |
2445 |
2816 |
2689 |
|
HYUNDAI 18 H17/21V |
1500RPM |
2268 |
2166 |
2520 |
2407 |
2772 |
2647 |
|
HYUNDAI 18 H17/21V |
1800RPM |
2592 |
2475 |
2880 |
2750 |
3168 |
3025 |
|
HYUNDAI 20 H17/21V |
1500RPM |
2520 |
2407 |
2800 |
2674 |
3080 |
2941 |
|
HYUNDAI 20 H17/21V |
1800RPM |
2880 |
2750 |
3200 |
3056 |
3520 |
3362 |
|
ENGINE TYPE |
DIMESNSION MM |
DRY MASS TON |
||||
|
A |
B1 |
C1 |
H |
ENG 2 |
GENSET 1.3 |
|
|
HYUNDAI 8 H17/21V |
1730 |
1993 |
3723 |
2100 |
4.9 |
9.6 |
|
HYUNDAI 10 H17/21V |
1965 |
2050 |
4015 |
2100 |
5.8 |
11.2 |
|
HYUNDAI 12 H17/21V |
2200 |
2050 |
4250 |
2100 |
6.7 |
13.2 |
|
HYUNDAI 16 H17/21V |
2600 |
2050 |
4650 |
2100 |
8 |
15.2 |
|
HYUNDAI 18 H17/21V |
2800 |
2680 |
5480 |
2100 |
8.9 |
16.8 |
|
HYUNDAI 20 H17/21V |
3100 |
2680 |
5780 |
2100 |
9.8 |
18 |
